Model NO.
Top Entry Ball Valve
Quantity:

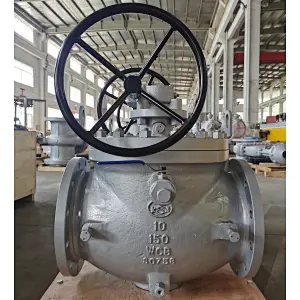

Top entry trunnion mounted ball valves are widely used in petroleum and natural gas pipelines, as well as in oil extraction, oil refining, petrochemical, chemical, chemical fiber, metallurgy, electric power, nuclear power, food, and paper making equipment. The top entry trunnion mounted ball valve is easy and quick to disassemble on the pipeline, and the maintenance is convenient and fast. When the valve fails on the pipeline and needs to be repaired, it is not necessary to remove the valve from the pipeline. It is only necessary to remove the middle flange bolts and nuts, remove the bonnet and stem assembly from the valve body together, and then remove the ball and valve Block assembly. You can repair the ball and valve seat online. This maintenance saves time and minimizes losses in production.


Structure: Top Entry Type

Size: 2”~24” (50mm~600mm)

Class: 150LB~900LB

Operator: Lever, Gear, Electric, Pneumatic etc.


Standard:

Design: ASME B16.34, API6D

End flange: ASME B16.5

Butt Weld: ASME B16.25

Inspection and Testing: API598

Face to face: ASME16.10 and DIN3202

Fire Safe Test: API 607/API 6FA


Main Materials:

Body Material: WCB, CF8, CF3, CF8M, CF3M, A105(N), LF2, LF3, F304, F316, F321, F304L, F316L, Inconel, Monel etc.

Ball Material: A105+ENP, F6a, F304, F316, F304L, F316L, F51 etc.

Stem Material: 17-4Ph, XM-19, F6a, F304, F316, F51 etc.

Seat Material: PTFE, RPTFE, PEEK, NYLON, DEVLON, etc.


Design Feature:

Full Bore or Reduced Bore

Bolted Bonnet

Soft Seated

Mirror-finished Solid Ball

Anti Blowout Stem

Cavity Pressure Self Relief
