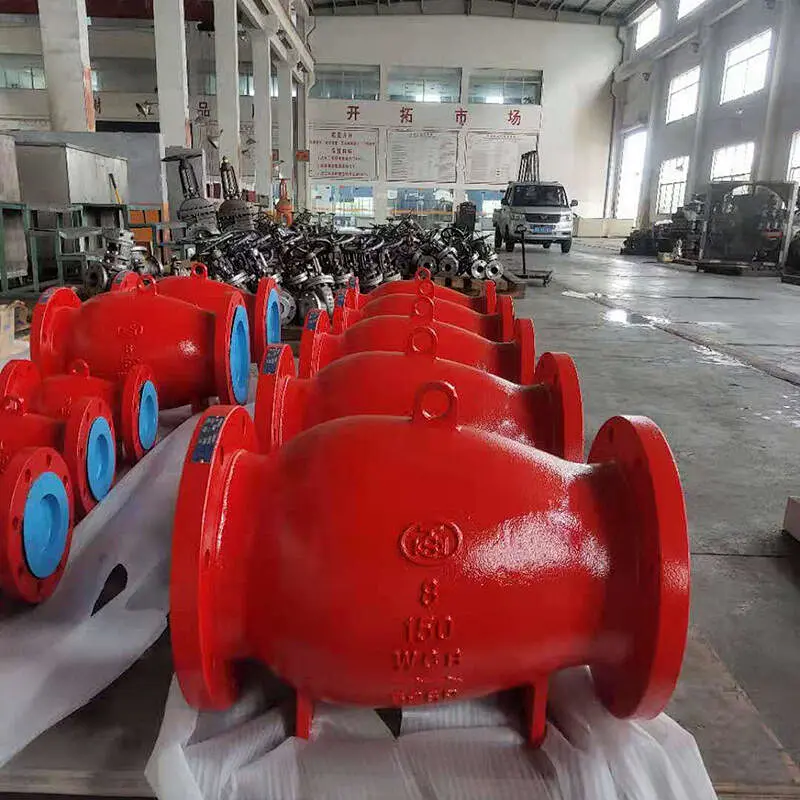

Axial Flow Check Valve
Axial Flow Check Valve

Axial Flow Check Valve

Model NO.
Axial Flow Check Valve
Quantity:

Except of the general function of check valves, the axial flow check valve has is also designed with a shock-absorbing spring, which has the effect of silencing and shock-absorbing. It is convenient for users to check and repair on site. The unique axial flow structure has the characteristics of small flow resistance, large flow rate, and small size. It is the optimal valve for oil and gas pipeline network system, especially for oil pump outlets. It is suitable for pipeline of oil, gas and water slurry to prevent the medium from being used in countercurrent.

Structure: Integral Body

Size: 2”~40” (50mm~1000mm)

Class:150LB~2500LB

Connection Ends: Flange, Welded

Standards:

Design: API 6D, ASME B16.34

Pressure and Temp. Range: ASME B16.34

Face to Face:ASME B16.10

Flange Ends: ASME B16.5

BW Ends: ASME B16.25

Inspection and Test: API598


Main Materials:

Body Materials: WCB, LCC, LCB, CF8, CF8M, CF3, CF3M, etc.

Disc Materials: WCB, LCC, LCB, CF8, CF8M, CF3, CF3M, etc.

Spring: SS, INCONEL etc.

Seat Material: Intergal, NBR, STL etc.

Design Feature:

Floating Disc Design

Lift/ Piston Type

Streamlined Runner
