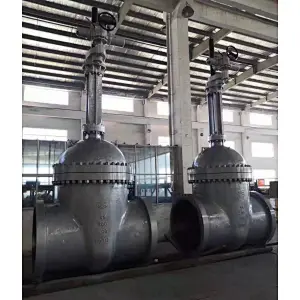

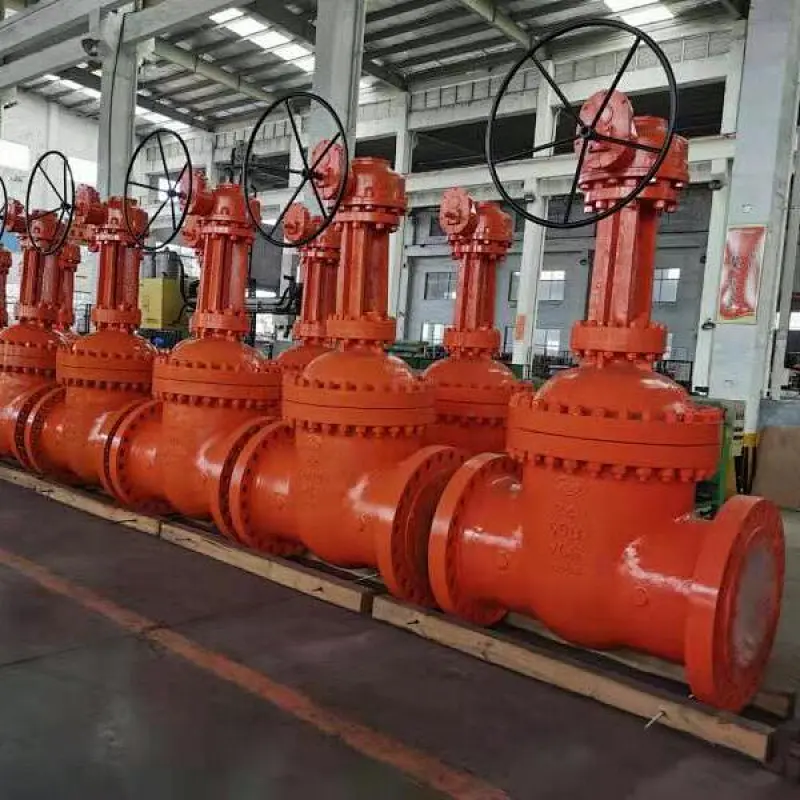

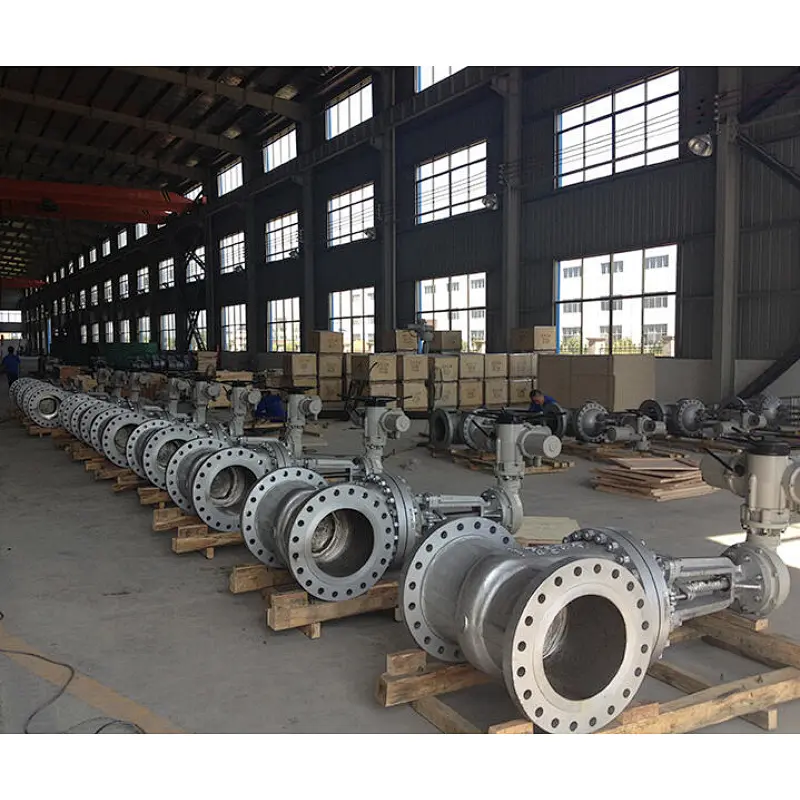

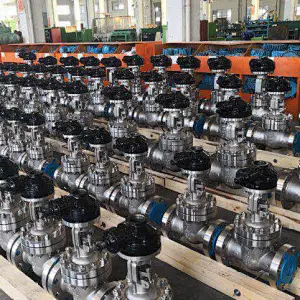

API600 GATE VALVE

As an opening and closing device, wedge gate valve is widely used in the pipelines of petrochemical, thermal power plants and other oil products, water vapor. Generally, wedge gate valve is used in the condition where has no strict size required, but the working condition is more harsh, such as high temperature and high pressure, or the long-term sealing condition.

Structure: Bolted Bonnet,Pressure Seal, OS&Y

Size: 2”~48” (50mm~1200mm)

Class: 150LB~2500LB

Connection Ends: Flange, Welded

Operator: Handwheel, Electric, Pneumatic etc.

Standards:

Design: API 600

Pressure and Temp. Range: ASME B16.34

Face to Face：ASME B16.10

Flange Ends: ASME B16.5

BW Ends: ASME B16.25

Inspection and Test: API598

Main Materials:

Body Materials: WCB, LCC, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, LF1, F11, F304, F316, F304L, F316L, F321 etc.

Disc Materials: WCB, LCC, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, LF1, F11, F304, F316, F304L, F316L, F321 etc.

Stem Material: Stainless Steel

Seat Material: Integral/ Hard Surface etc.

Design Feature:

Integral Flange or BW Ends

Flexible or Solid Wedge

Outside Screw and Yoke

Renewable Seat Ring

Rising or Non-rising Handwheel
