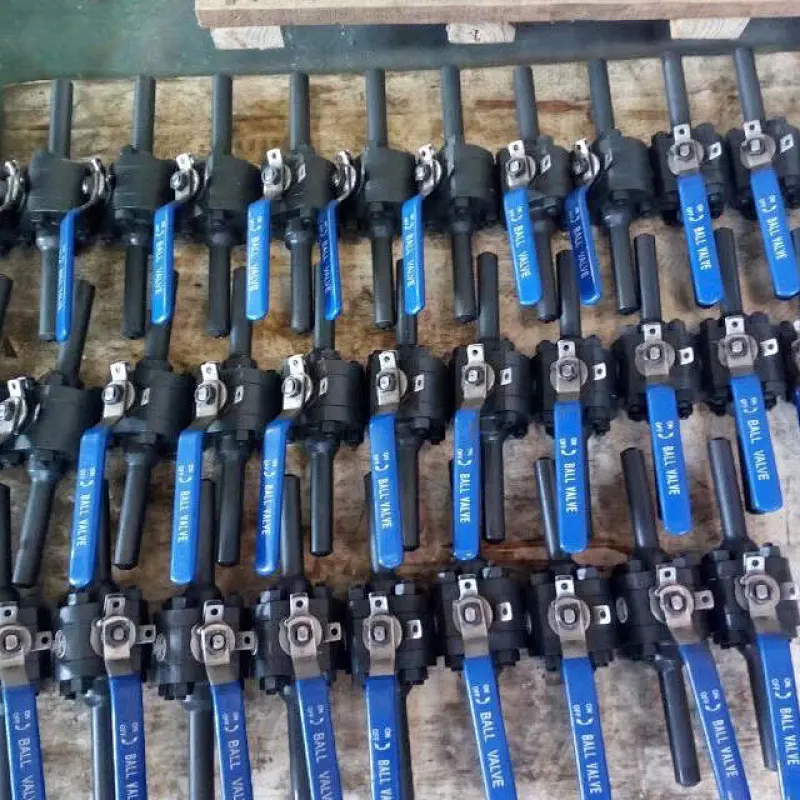

3-PC Floating Ball Valve

The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.

Structure: 3 pcs body.

Size: 1/2”~8” (15mm~200mm)

Class: 150LB~2500LB

Connection Ends: Flange, Butt Weld, Socket Weld, Screwed etc.

Operator: Lever, Gear, Electric, Pneumatic etc.

Standards:

Design: API 6D, ASME B16.34, ISO 14313, ISO 17292

Pressure and Temp. Range: ASME B16.34

Inspection and Test: API598

Flange Ends: ASME B16.5

Butt Weld Ends: ASME B16.25,

Socket Weld Ends: ASME B16.11

Screwed Ends: ASME B1.20.1

Fire Safe: API 607,

Anti Static: API 608

Main Materials:

Body Materials: WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, 5A, etc.

Ball Materials: A105+ENP, F6a, F304, F304L, F316, F316L, F51, Inconel, etc.

Stem Material: 17-4Ph, XM-19, F6a, F304, F316, F51 etc.

Seat Material: PTFE, RPTFE, PEEK, NYLON, DEVLON, etc
